NEEWER ST-NA-12 Telephoto Lens Support Bracket

📦Biggest deals of the month! July 11~17
Ends July 18, 2024 at 2:00 pm
The product discount will be automatically applied once you add it to the cart.
SKU: 66602213

4 in stock

All Neewer products carry a 2-Year Warranty and 45-day Return. Learn more at Warranty Policy.

Shipping Policy

Shipping from local warehouse based on your area, normally it takes 2~10 days for the delivery, Learn more at Shipping Policy.

Firmware & Manual

To download the product firmware or manual, please visit our Download Center.


Due to the impact of tariffs and logistics costs, prices vary by location.

WARNING:This product can expose you to chemicals including [Lead and Phthalates], which
is [are] known to the State of California to cause cancer. For more information go to

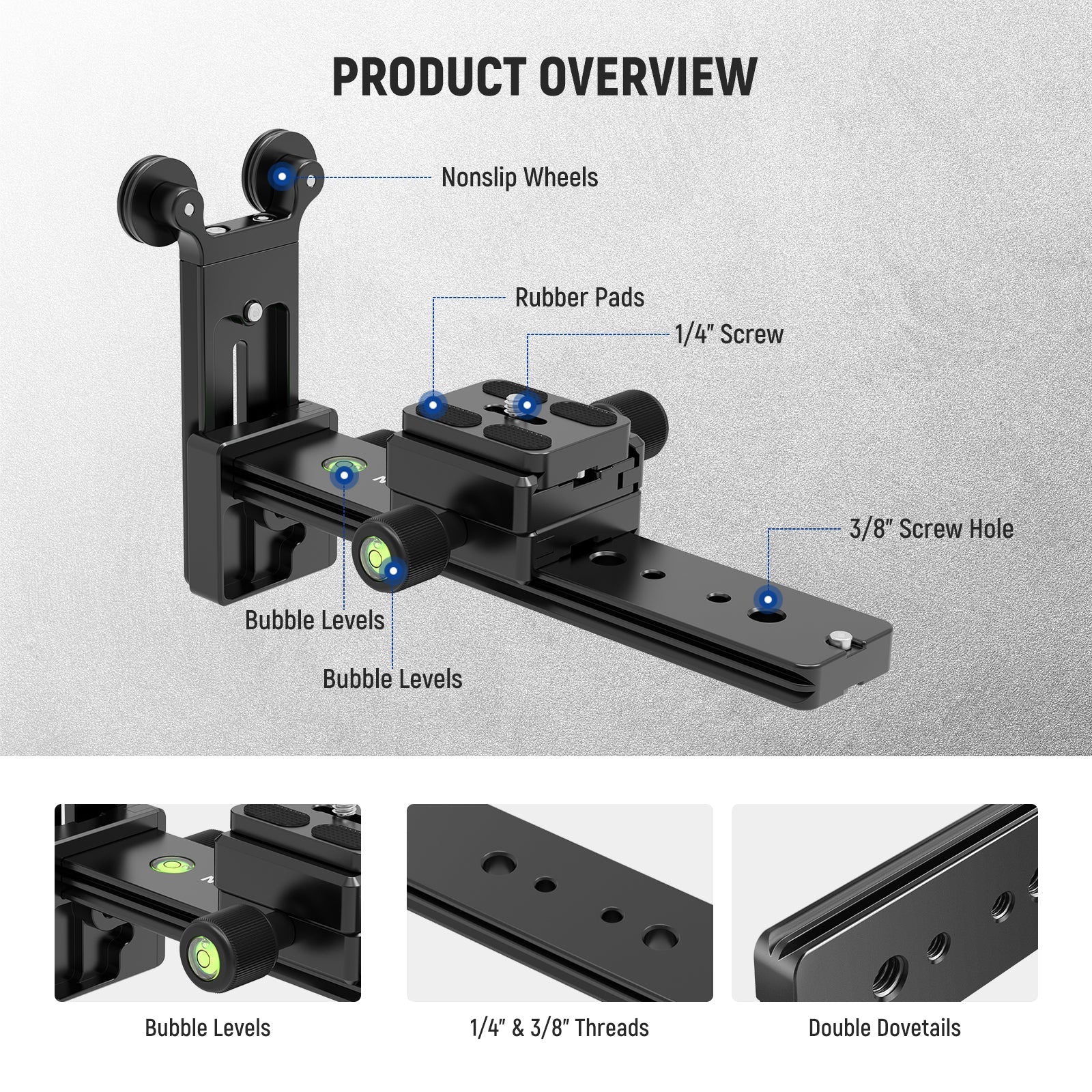

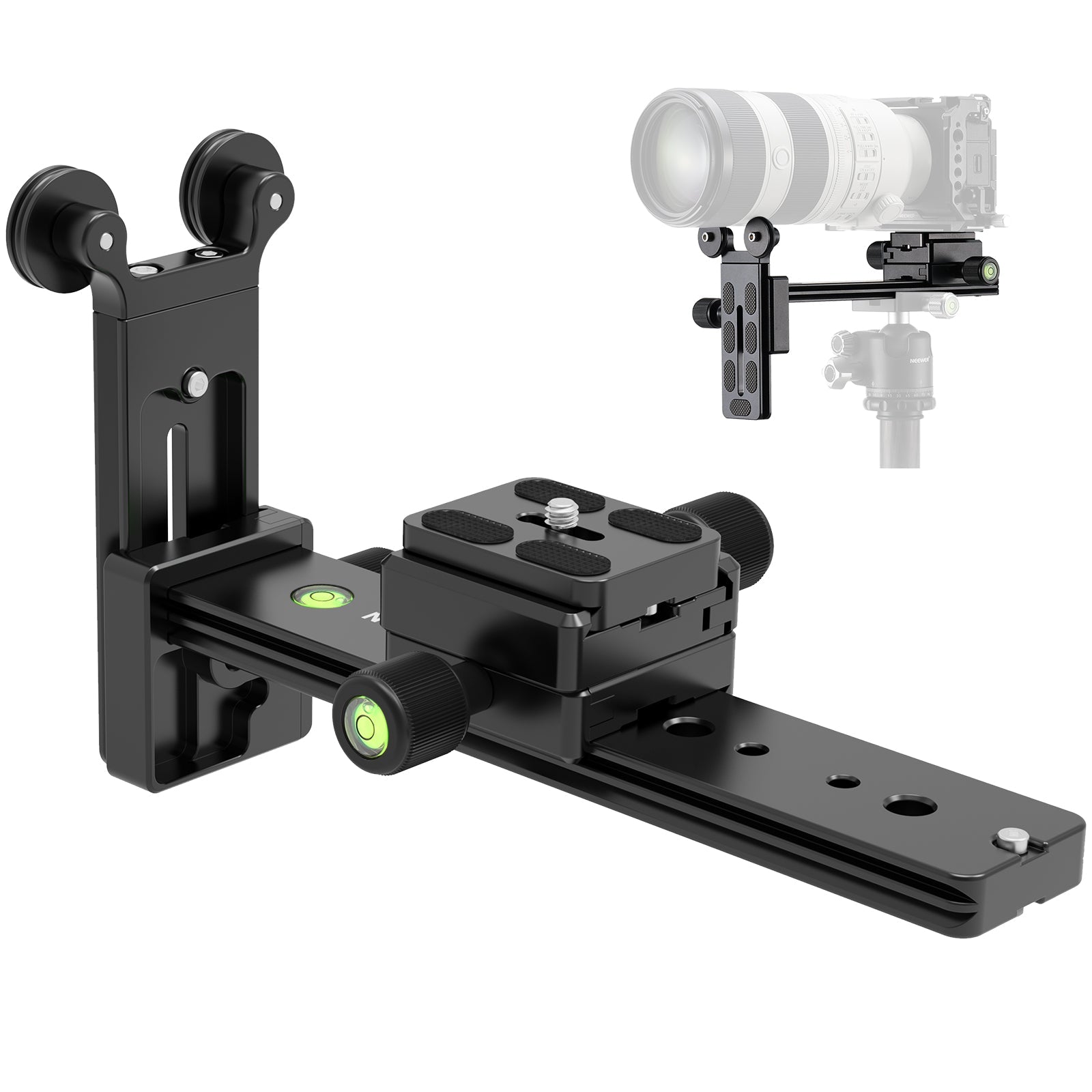

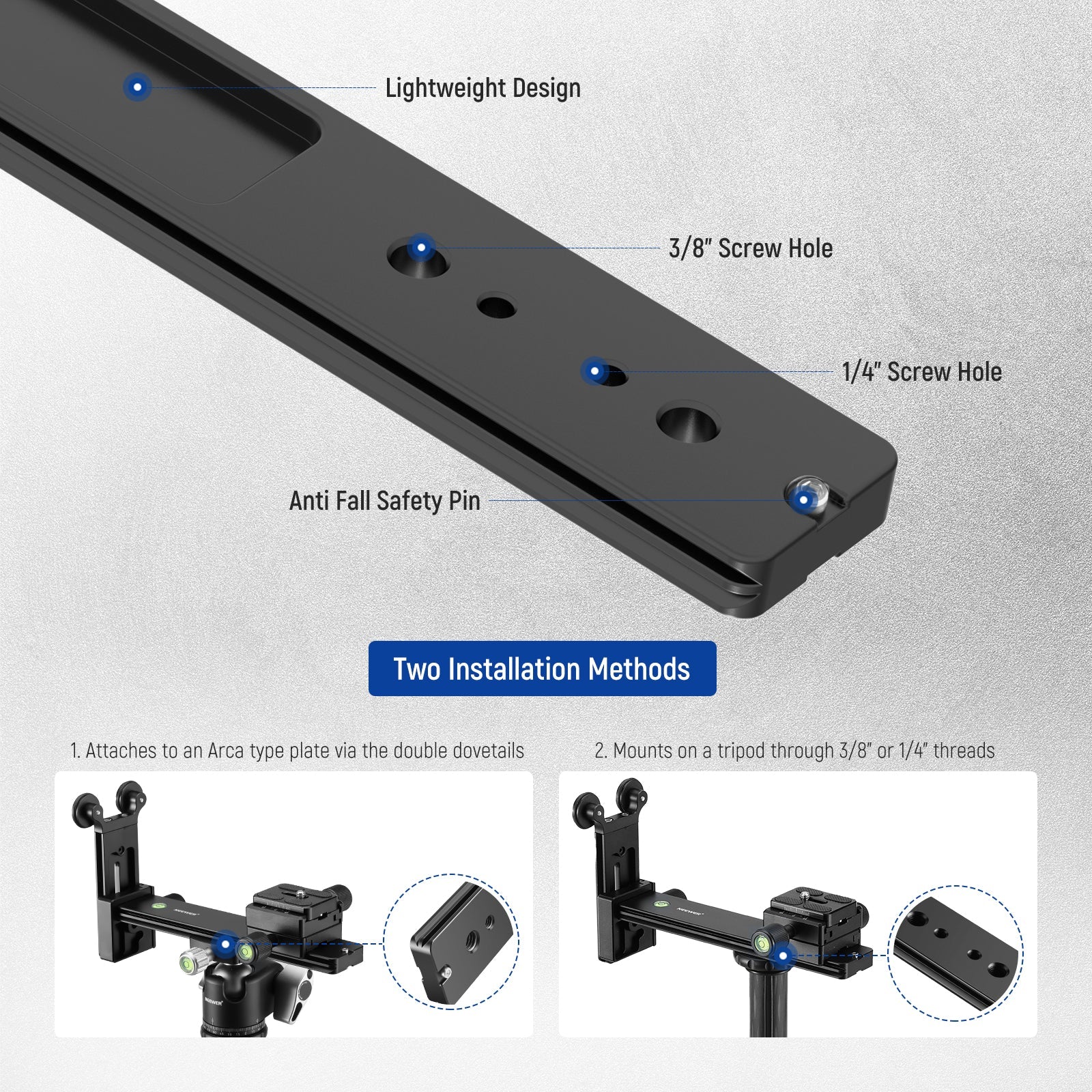

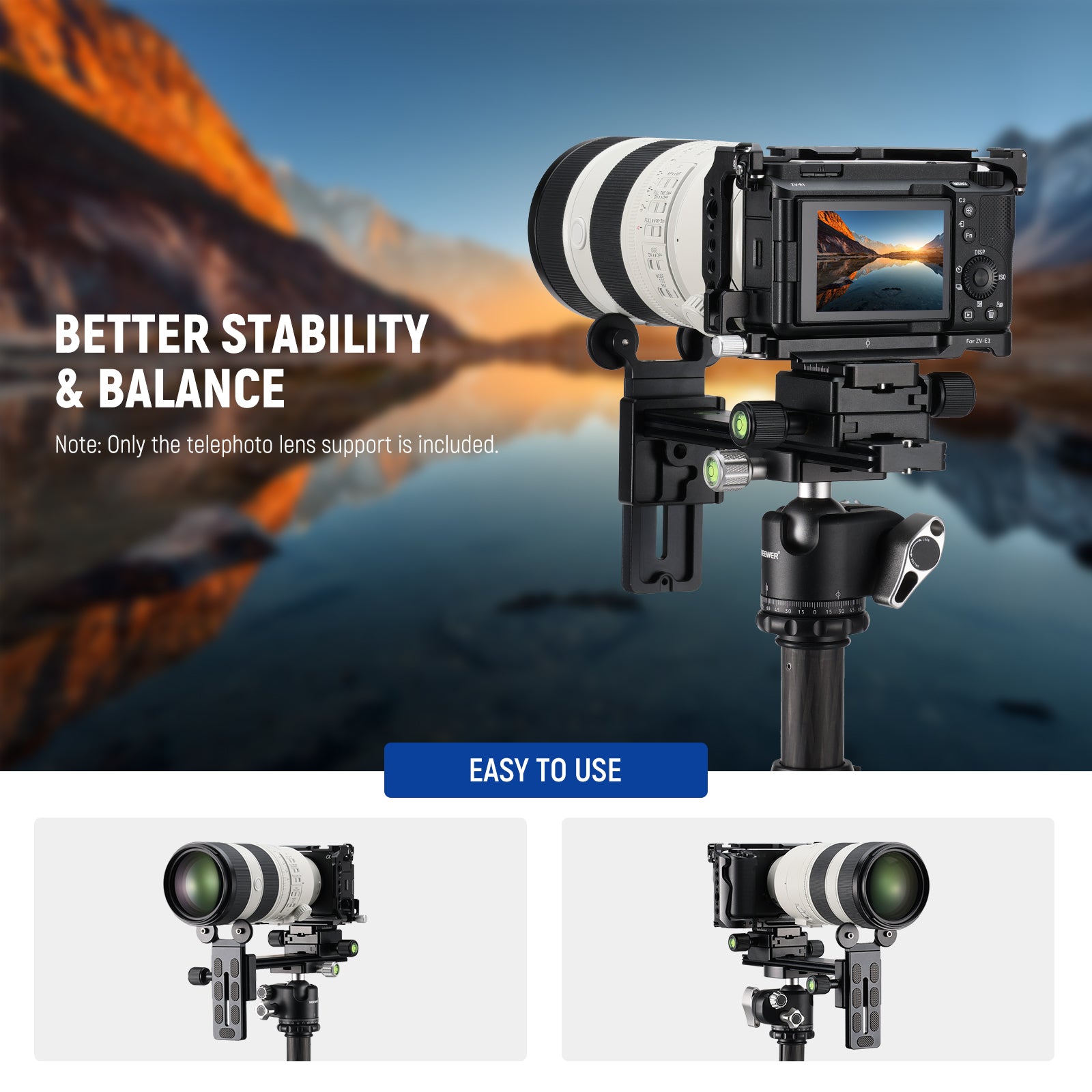

  • Telephoto Lens Support- NEEWER ST-NA-12 Telephoto Lens Support can stabilize a medium and long focus lens, balance the camera, and simplify lens and camera positioning. 1/4" and 3/8" bottom threads enable easy tripod connection
  • Quick Release Mounting- The lens support features standard Arca type dovetails that allow you to attach the quick release plate and Y bracket in a few seconds. Use screw knobs to secure each unit firmly in place

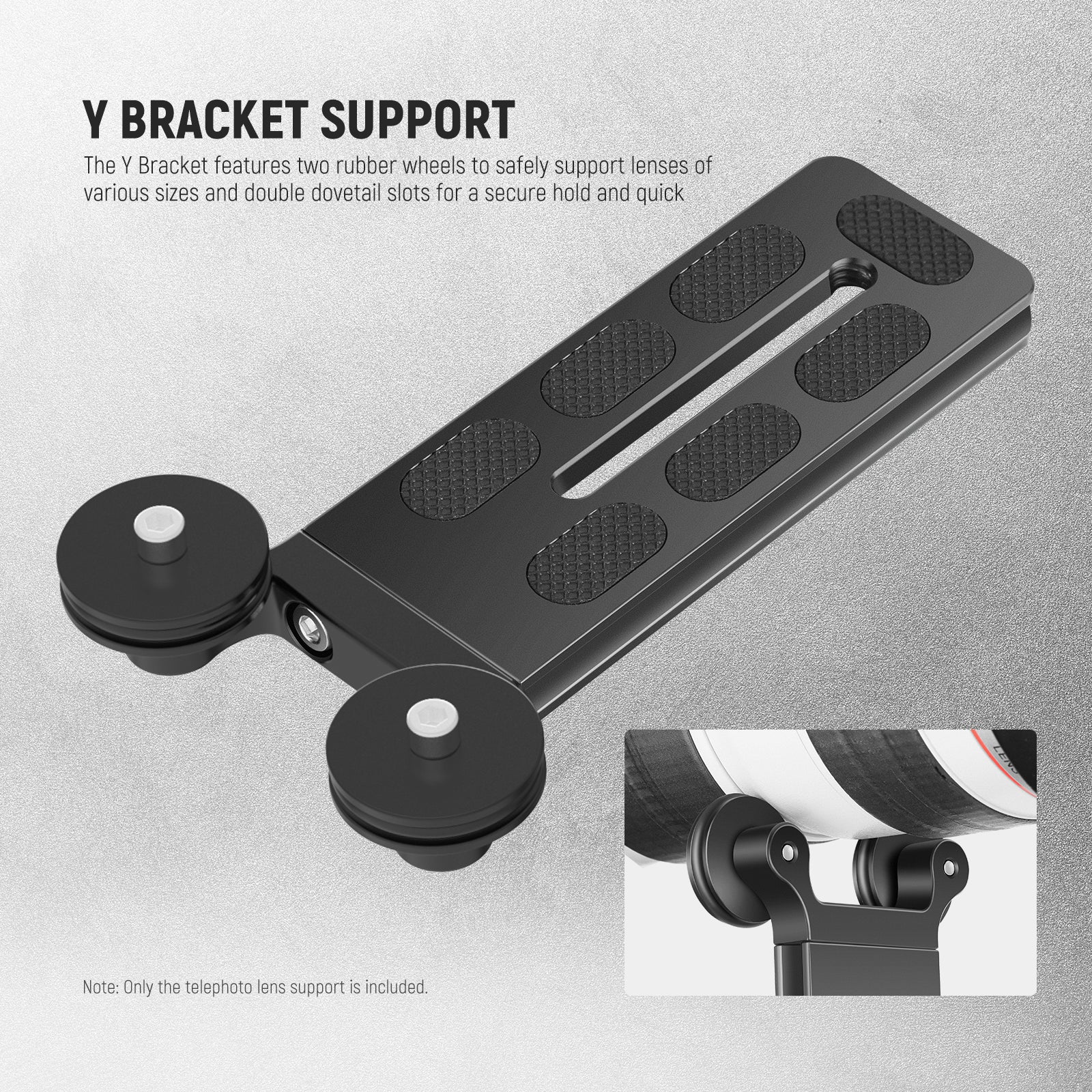

  • Nonslip Rubber Wheels- The Y Bracket features double wheels with a 1.8" (46mm) spacing in between—wide enough to support various medium and long focus lenses. Wheels are rimmed with soft and nonslip rubber to avoid scratches

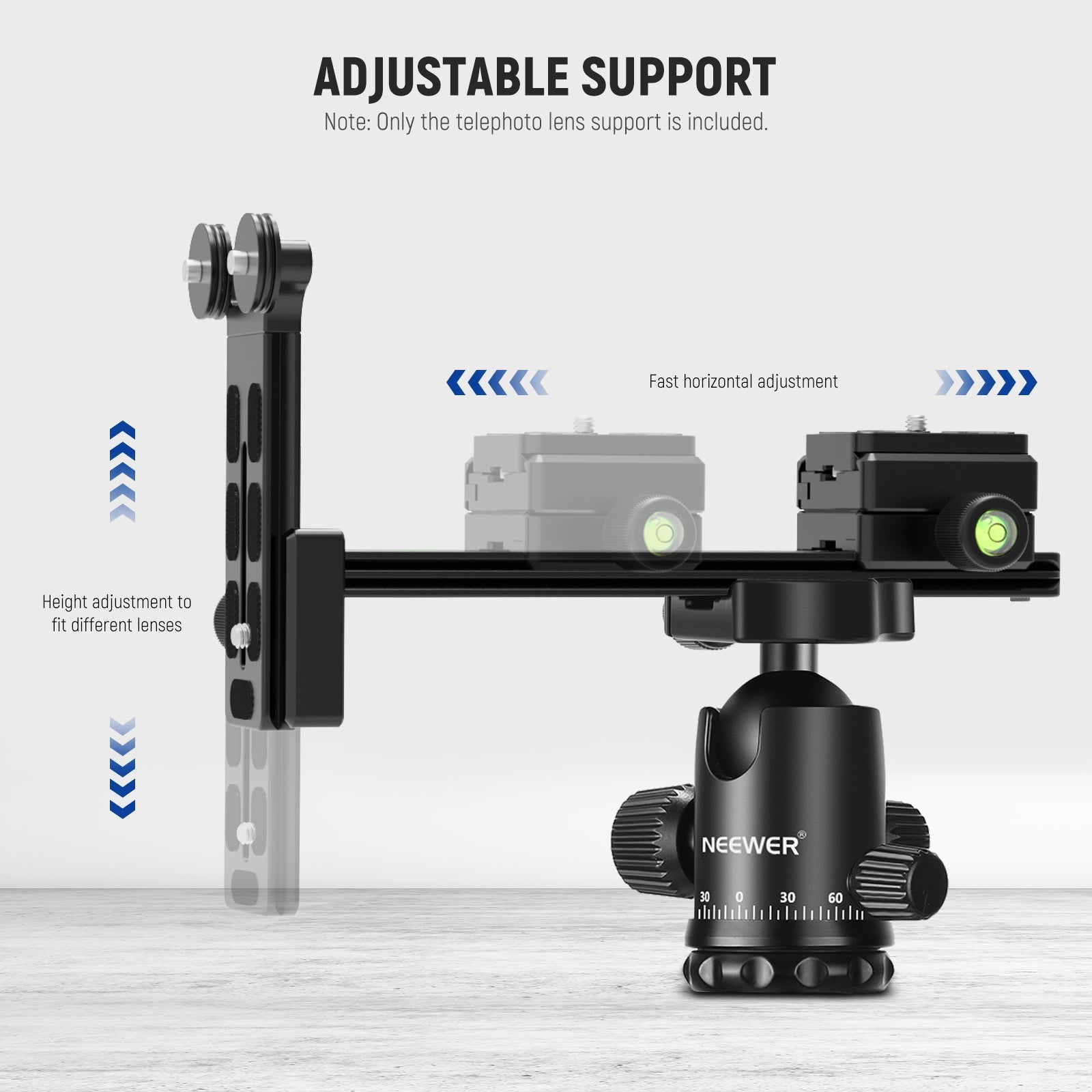

  • Easy Position Adjustment- Camera position is horizontally adjustable thanks to the dual clamp design. While the adjustable height can accommodate lenses of various sizes
  • Solid Metal Construction- Made of durable black anodized aluminum alloy with CNC precision machining, this product can support different lenses up to 22lb (10kg) in weight


  • Model: ST-NA-12
  • Material: Aluminum alloy
  • Load Capacity: 22lb/10kg

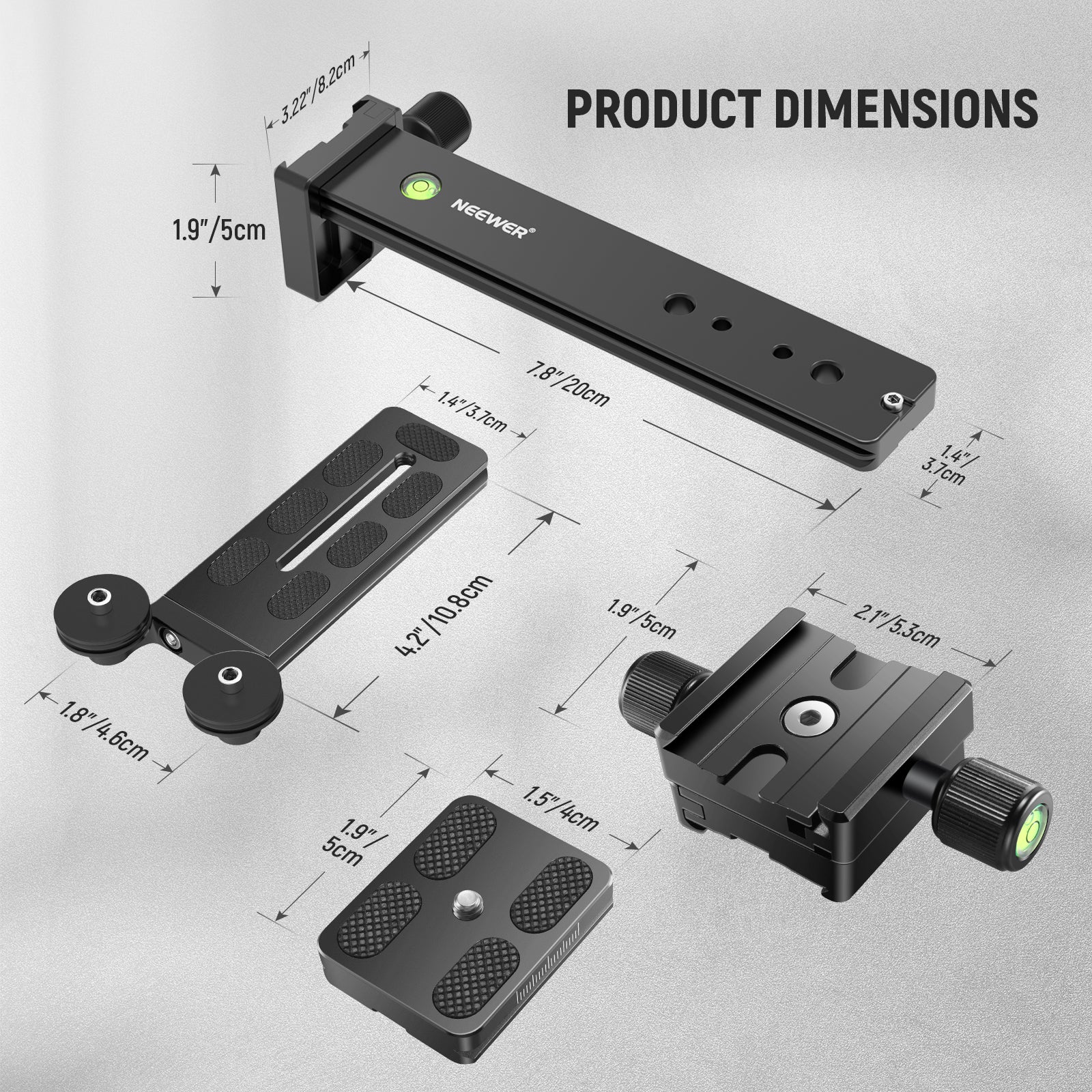

  • Base Plate Size: 7.9" x 1.5" x 0.5"/200 x 38 x 12mm
  • Y Bracket Size: 5.1" x 1.5" x 0.4"/130 x 38 x 10mm
  • Double Clamp Size: 2" x 2" x 1.2"/50 x 50 x 30mm
  • Quick Release Plate Size: 2" x 1.5" x 0.4"/50 x 38 x 10mm
  • Wheel Spacing: 1.8"/46mm
  • Wheel Diameter: 1"/26mm
  • Weight: 13.4oz/380g

Package Contents

  • 1 x Telephoto Lens Support
  • 1 x 2.5mm L Shaped Hex Key
  • 1 x 3.5mm L Shaped Hex Key
  • 1 x User Manual
