NEEWER F500 PRO 5.5" Camera Field Monitor

Description

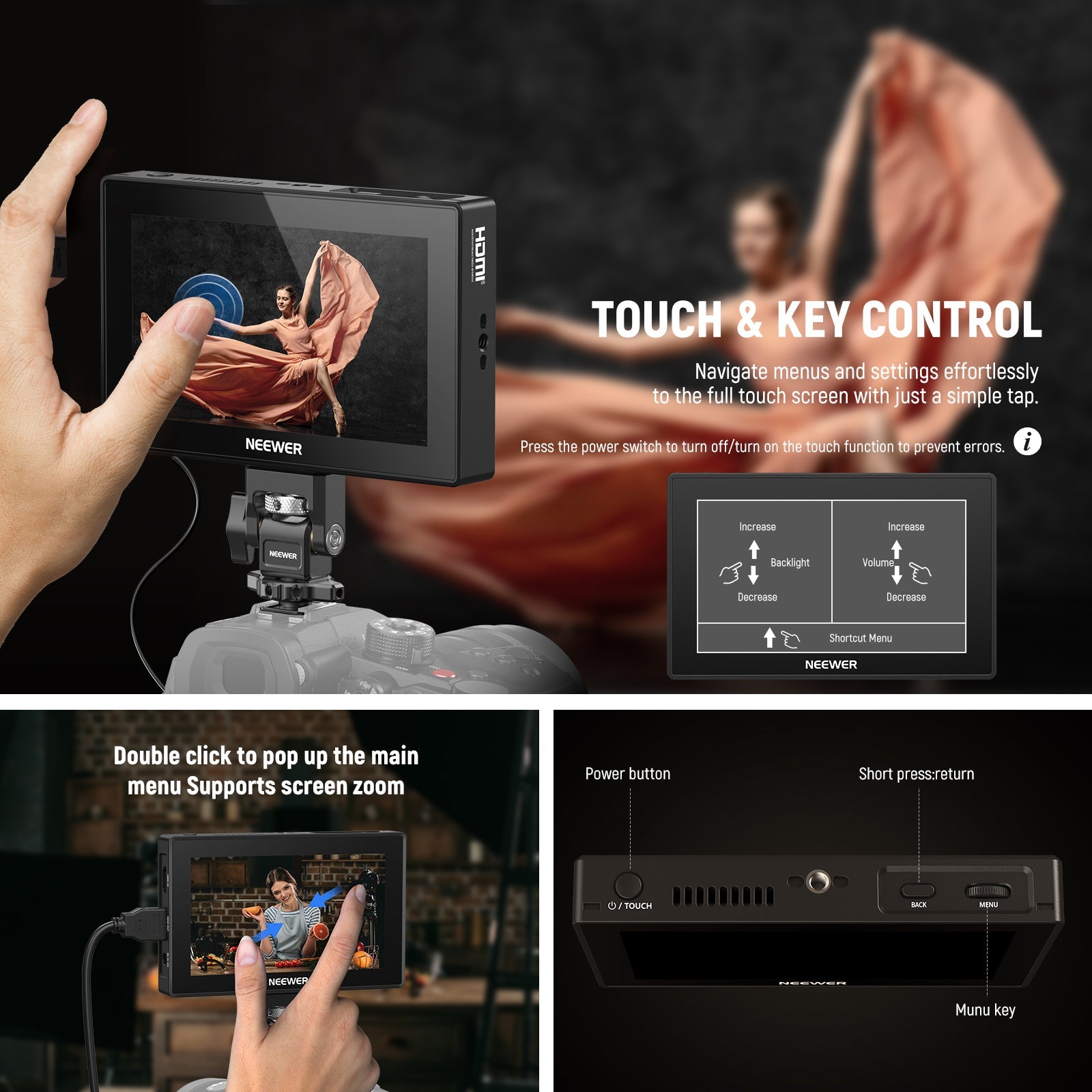

• 1575nit Touch Screen with 160° Wide Angle- The field monitor features a 5.5" IPS touch screen with a 1920x1080 full HD resolution, 1575nit brightness, 1000:1 contrast ratio, 16:9 aspect ratio, 160° ultra wide viewing angle, and 180° tilting for crisp, vibrant visuals even in strong daylight. Upgraded with manual and automatic backlight adjustment (1-100) to fit different lighting conditions, the monitor with key and touch controls (can be disabled) for intuitive use

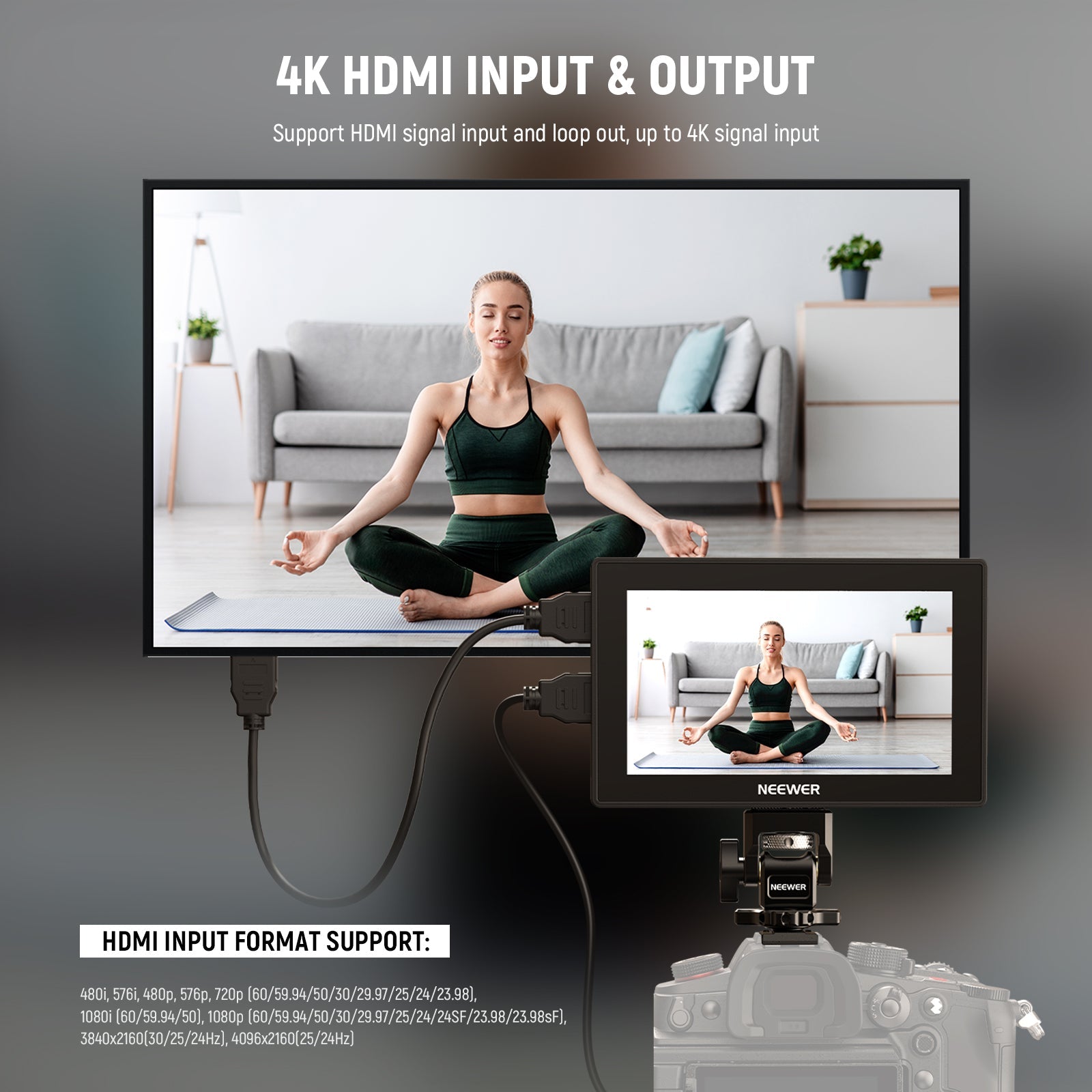

• 4K HDMI Loop In & Out- Enjoy real time monitoring with 4K UHD input & seamless loop out for stunning image clarity and accurate visual control, and even share live screen across larger monitors or projectors without delay. Supports HDMI input of 4K UHD 3840X2160p (30/29.97/25/24/23.98Hz), 4096X2160p (24Hz), and 480i/480p/576i/576p/720p/1080i /1080p. This camera display includes a 3.5mm headphone jack for simultaneous real time audio monitoring (headphone NOT included)

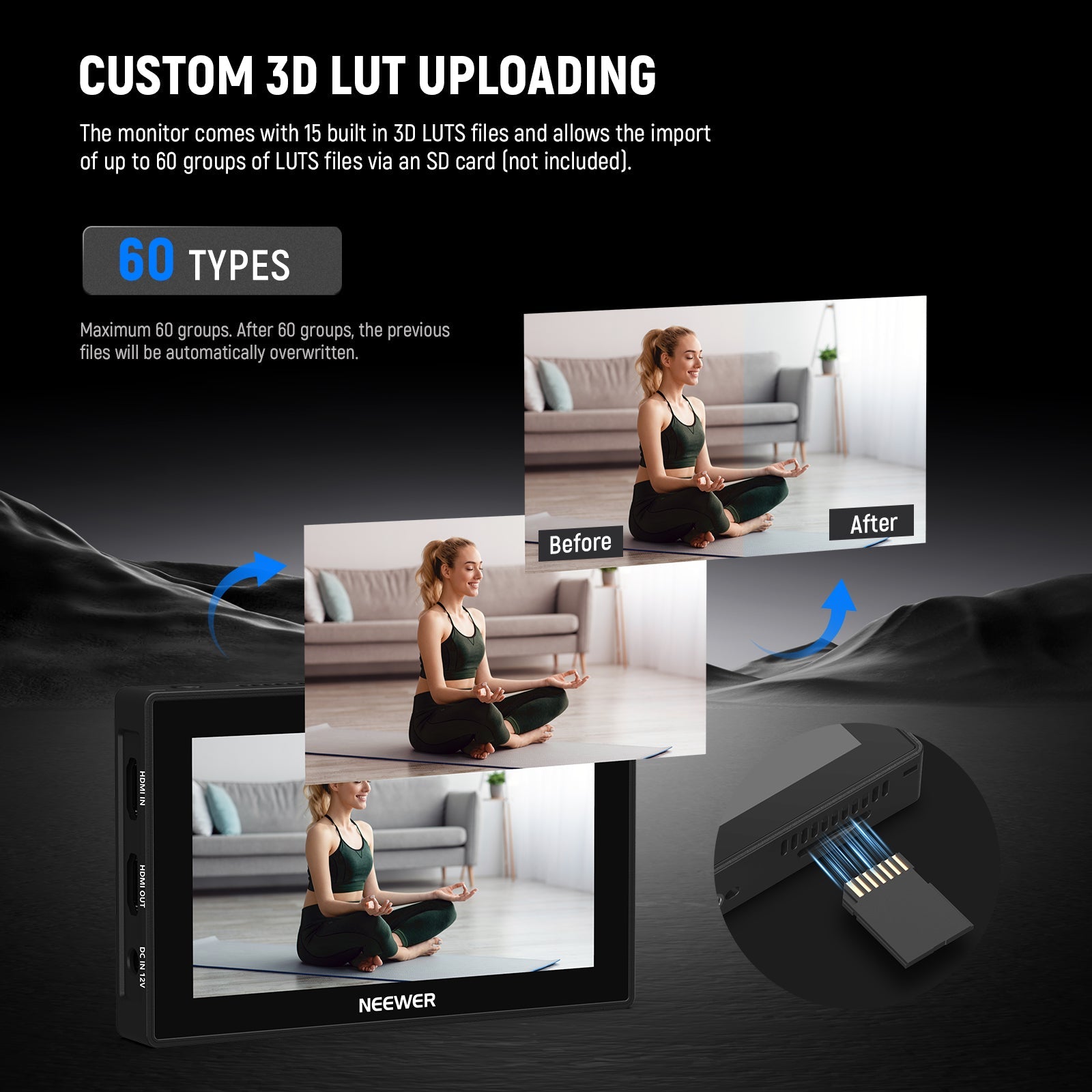

• Accurate Color Calibration & Custom 3D LUT Upload- Equipped with built in 3D LUT functionality, this field monitor offers precise color calibration, eliminating distortion and delivering natural, true to life colors beyond standard camera screens. Also supports HDR monitoring with high dynamic range and no color cast, reducing the need for extensive post production color grading. Includes 15 preloaded 3D LUTs and up to 60 custom 3D LUT file uploading via an SD card (not included)

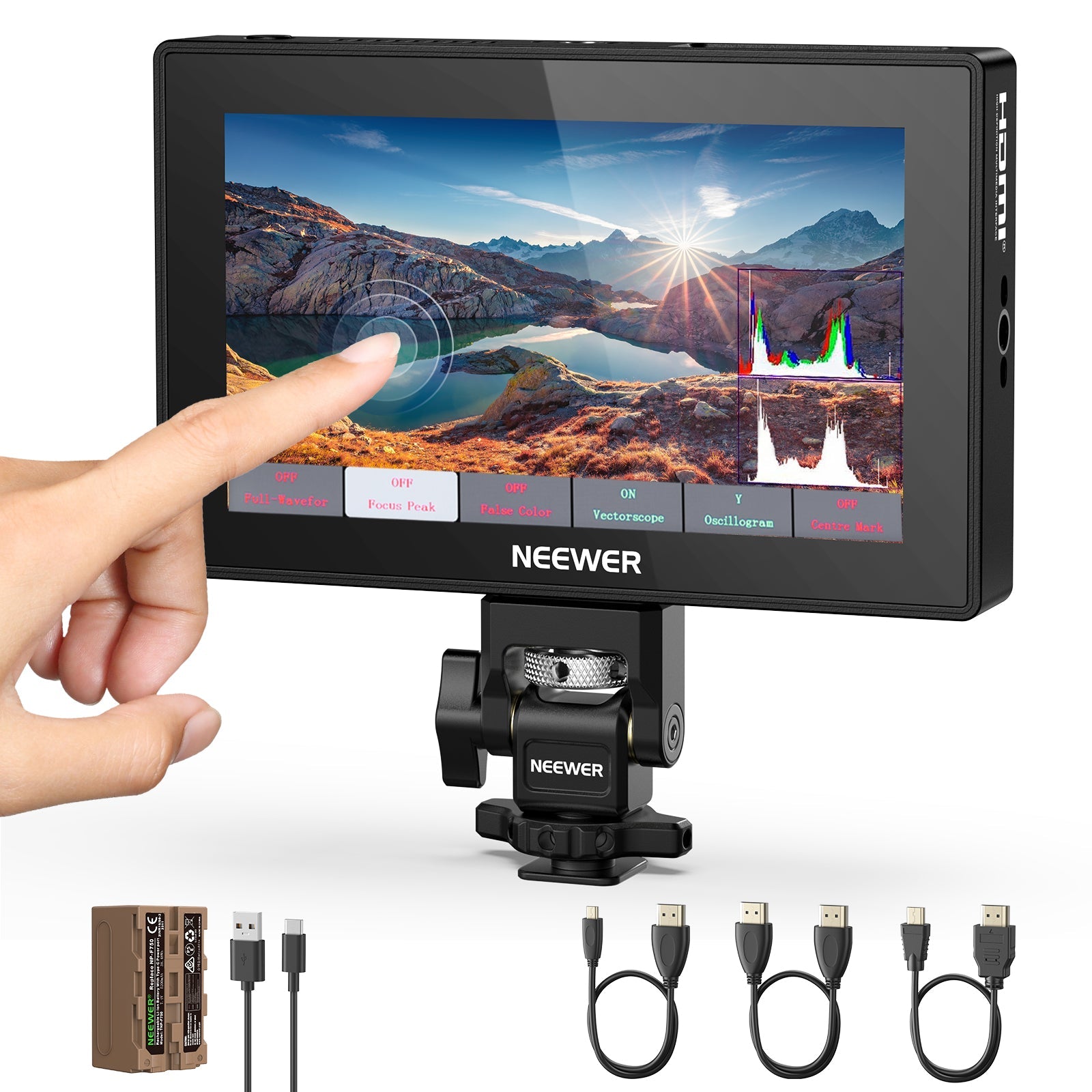

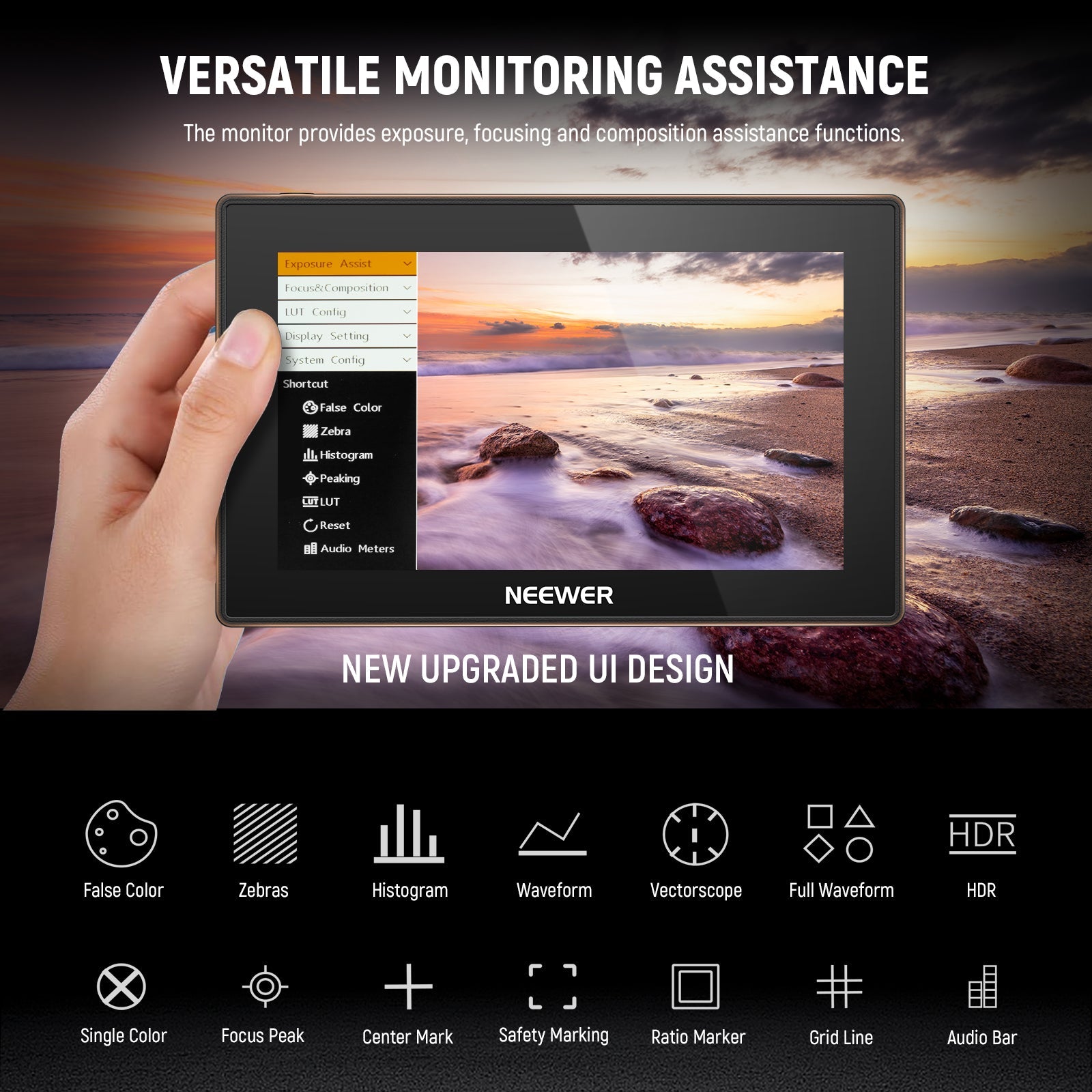

• Comprehensive Monitoring Tools- This camera video monitor as videography equipment features a full suite of professional monitoring aids, including full waveform, waveform graph, vectorscope, luminance histogram, focus peaking, audio level meter, zebra patterns, monochrome mode, and false color mode, helping you achieve precise control over composition, focus, and exposure during the shooting process. Supports firmware upgrading via an SD card (not included)

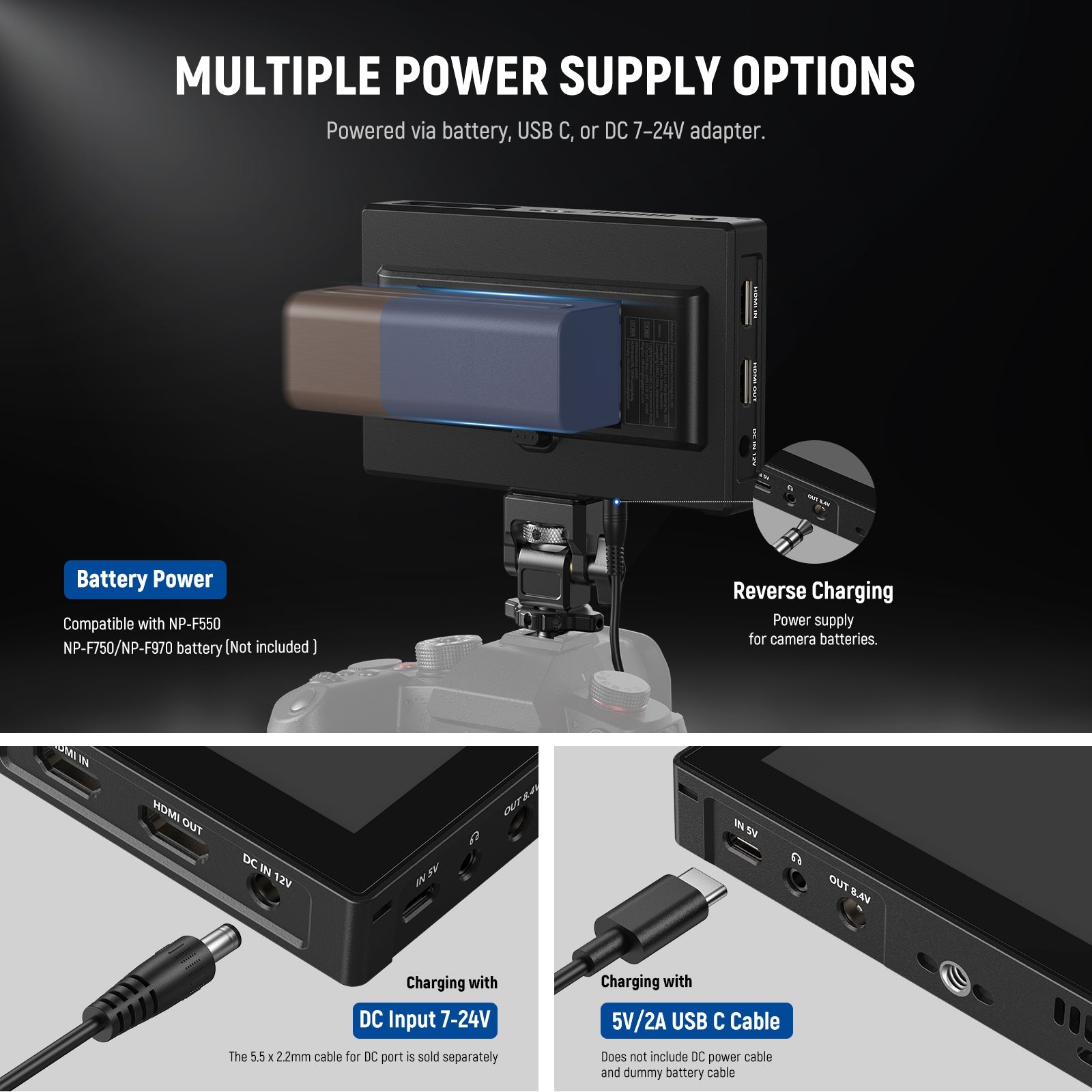

• Versatile Power Options- The DSLR monitor supports NP-F batteries(NP-F550/750/970), DC port, or USB Type C charging. Includes a high capacity 5200mAH NP-F750 battery. The monitor also doubles as a dummy battery with a max. DC 8.4V/1.5A output for camera. A built in cooling fan for heat dissipation. Essential photography accessories and must have gear for content creator and influencer. NOTE: For optimal battery longevity, please fully charge the battery before first use

Specifications

• Model: F500 PRO
• Item Type: Camera Field Monitor
• Color: Black
• Resolution: 1920x1080
• Dot Pitch: 0.0804(H)x0.0804(W)(mm)
• Aspect Ratio: 16:9
• Brightness: 1575nit ±10% (actual measured brightness)
• Contrast Ratio: 1000:1
• Viewing Angle: >160°H/160°V; 80°/80°(L/R) 80°/80°(U/D)
• Input: HDMI
• Output: HDMI, 3.5mm headphone jack
• Power Input: 5.5mm DC 7-24V, USB C 5V/2A, NP-F Batteries
• Power Output as Dummy Battery: Max. DC 8V/1.5A
• HDMI Input Format Support: 480i, 576i, 480p, 576p, 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/24SF/23.98/23.98sF), 3840x2160 (30/25/24Hz), 4096x2160 (25/24Hz)
• Total Power Consumption: ≤22W (without DC 8.4V output)
• Operating Temperature: -20°C-55°C
• Storage Temperature: -30°C-65°C
• Dimensions: 5.2"x3.1"x0.9"/132x82x20mm
• Mounting Point: Cold Shoe

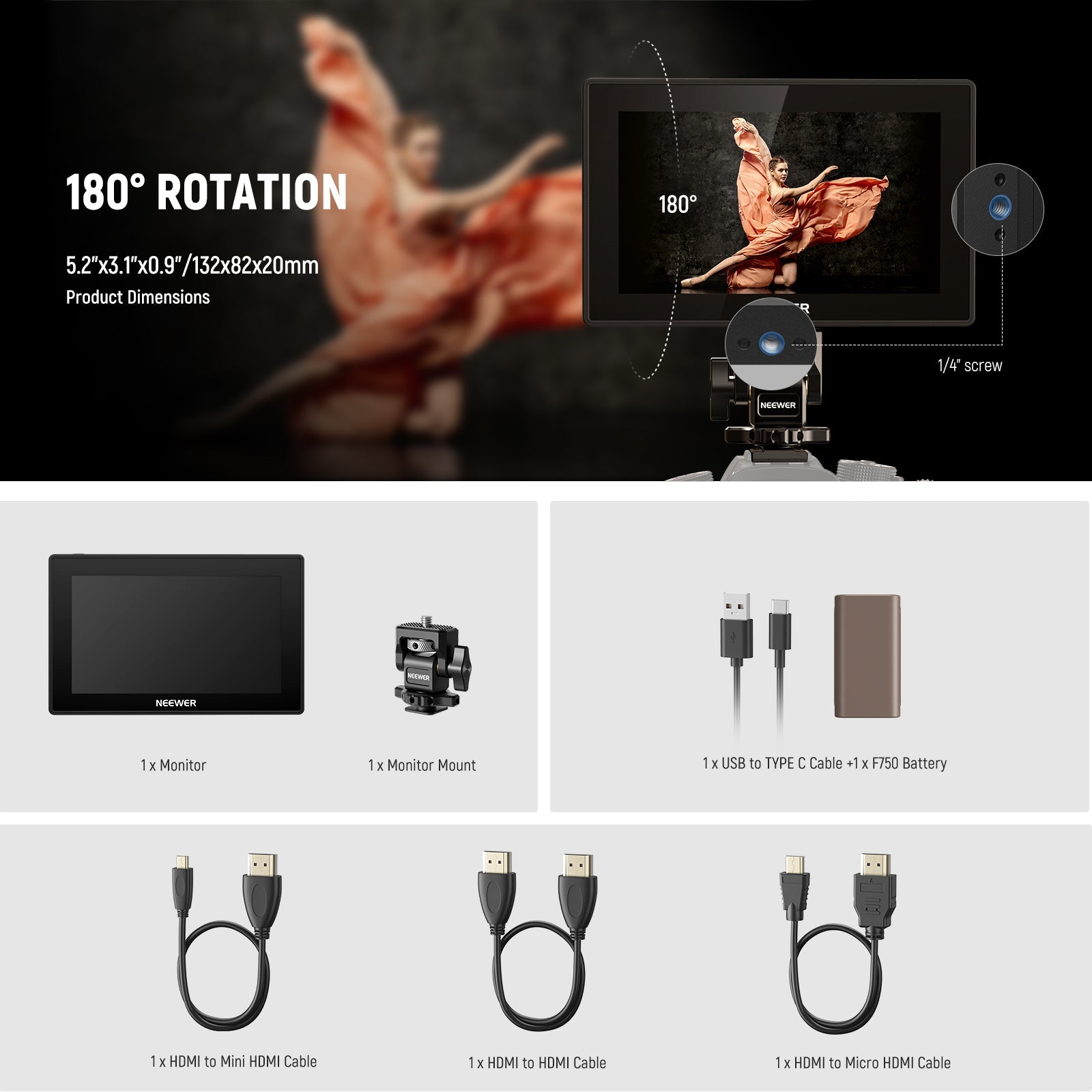

Package Contents

• 1 x Monitor
• 1 x Monitor Mount
• 1 x NP-F750 Battery (5200mAh)
• 1 x USB to Type C Charging Cable
• 1 x HDMI to Micro HDMI Cable
• 1 x HDMI to Mini HDMI Cable
