NEEWER QR011 Telescope Mount Tripod Adapter

$35.99
Add to cart and check for final discounted price!

SKU: 66602638
Warranty

All Neewer products carry a 2-Year Warranty and 45-day Return. Learn more at Warranty Policy.

Shipping Policy

Shipping from local warehouse based on your area, normally it takes 2~10 days for the delivery, Learn more at Shipping Policy.

Firmware & Manual

To download the product firmware or manual, please visit our Download Center.

Description

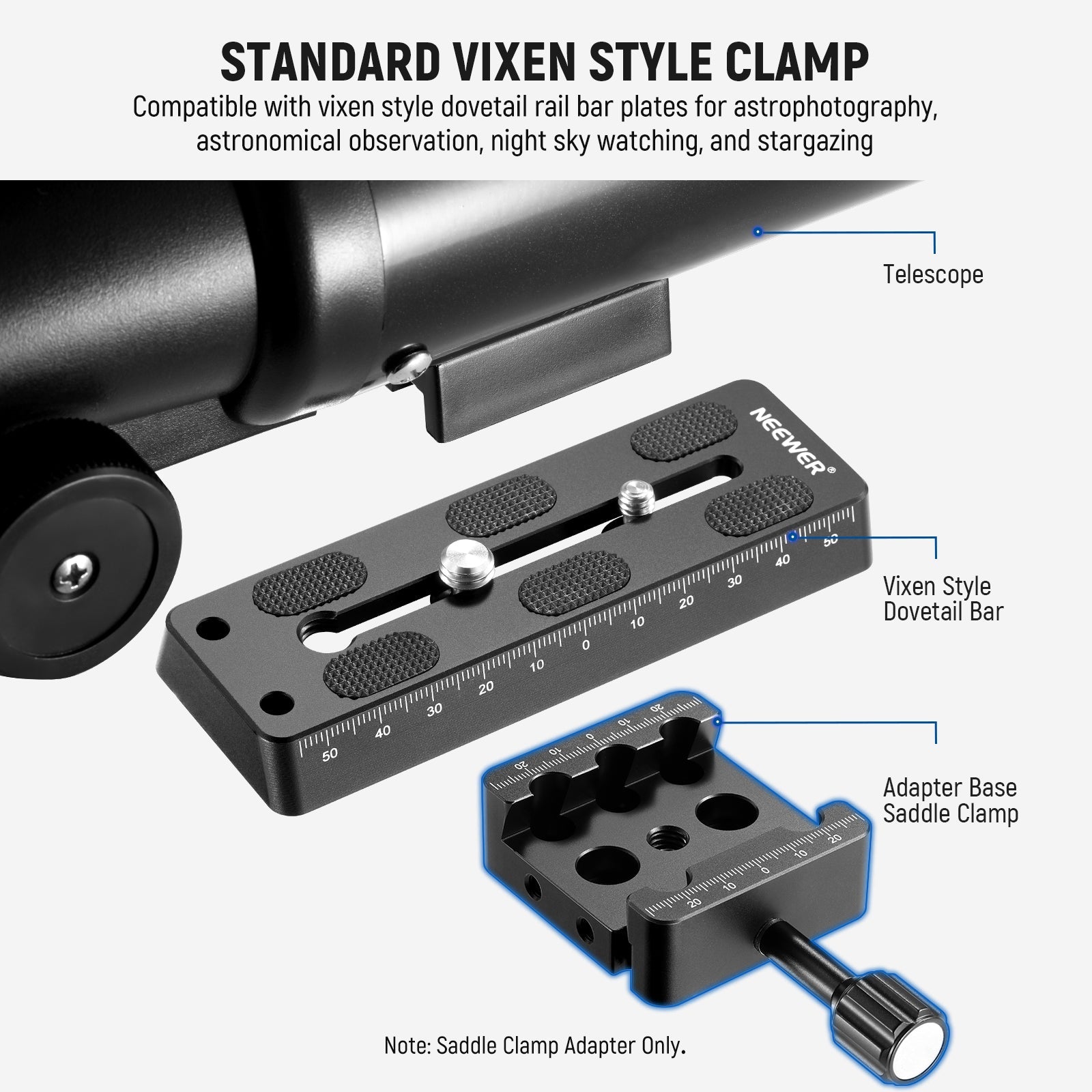

  • Standard Vixen Style Dovetail Bars Clamp- Compatible with vixen style dovetail rail bar plates for astrophotography, astronomical observation, night sky watching, and stargazing
  • Drop In Mounting Supported- Tilt the rail bar plate and insert the lower end into the saddle clamp, then slide it in until the rail bar plate sits flush inside the clamp. Note: the rail bar plate is not included

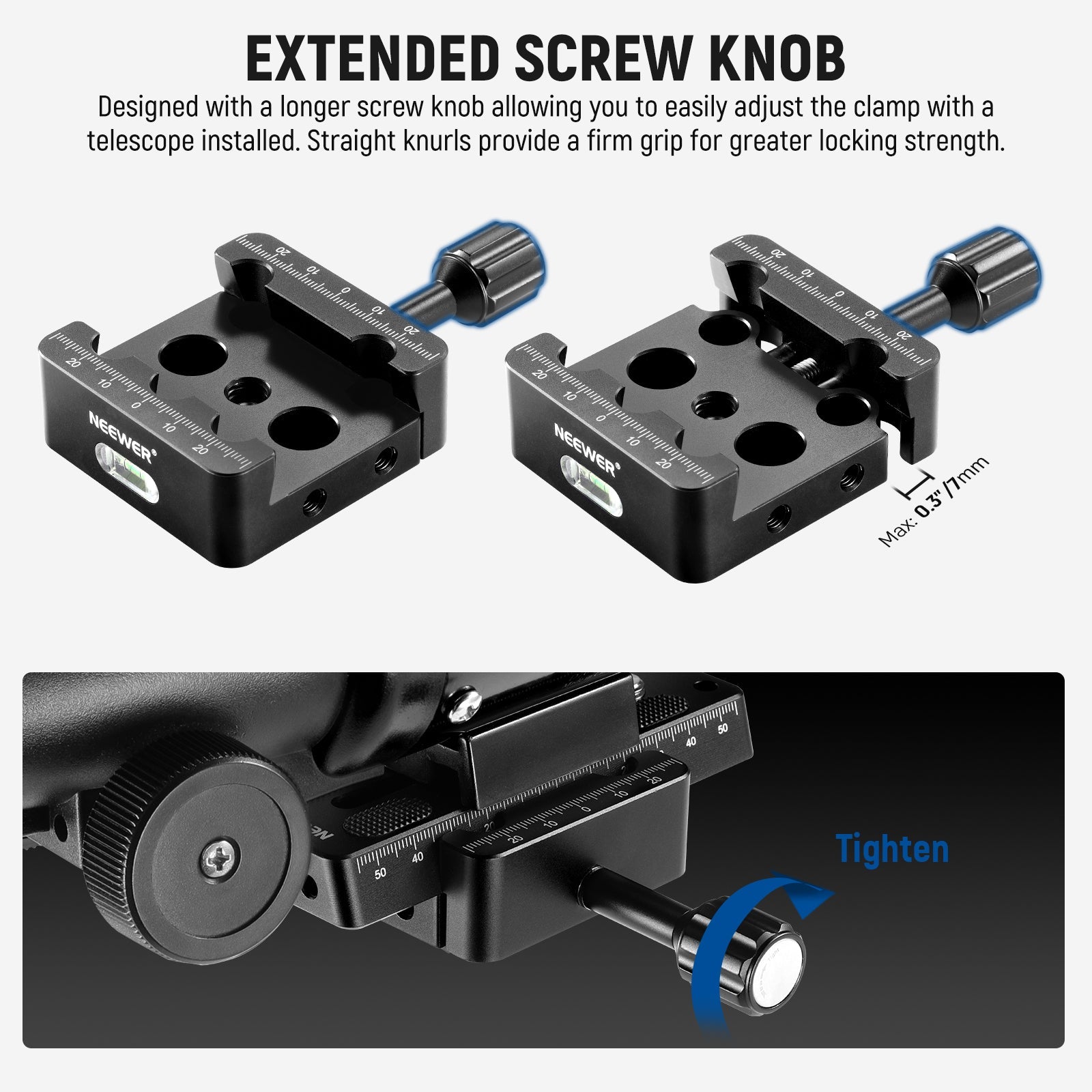

  • Long Adjustment Screw Knob- The prolonged screw knob lets you unimpededly adjust the clamp with a telescope installed. Straight knurls provide a firm grip for greater locking strength

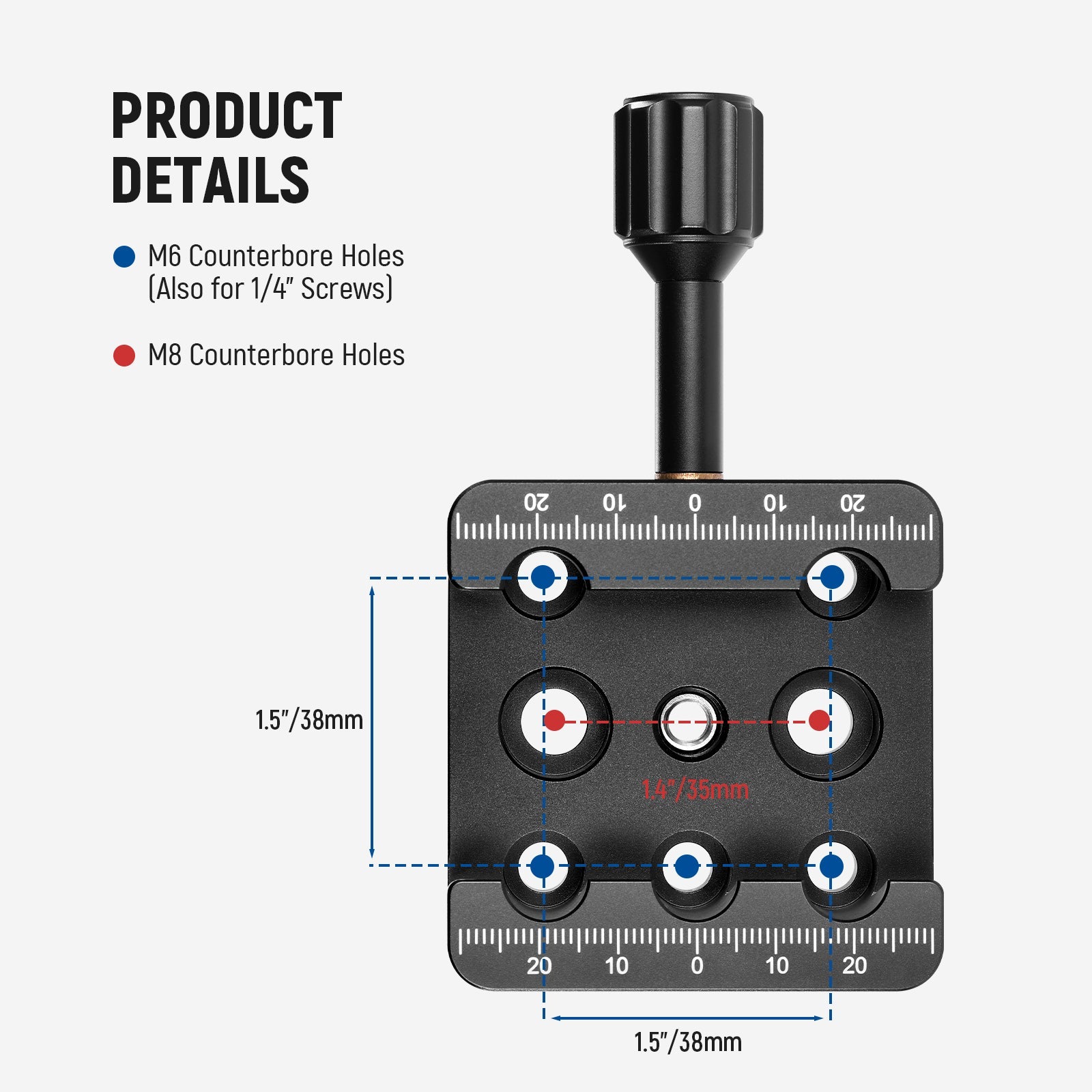

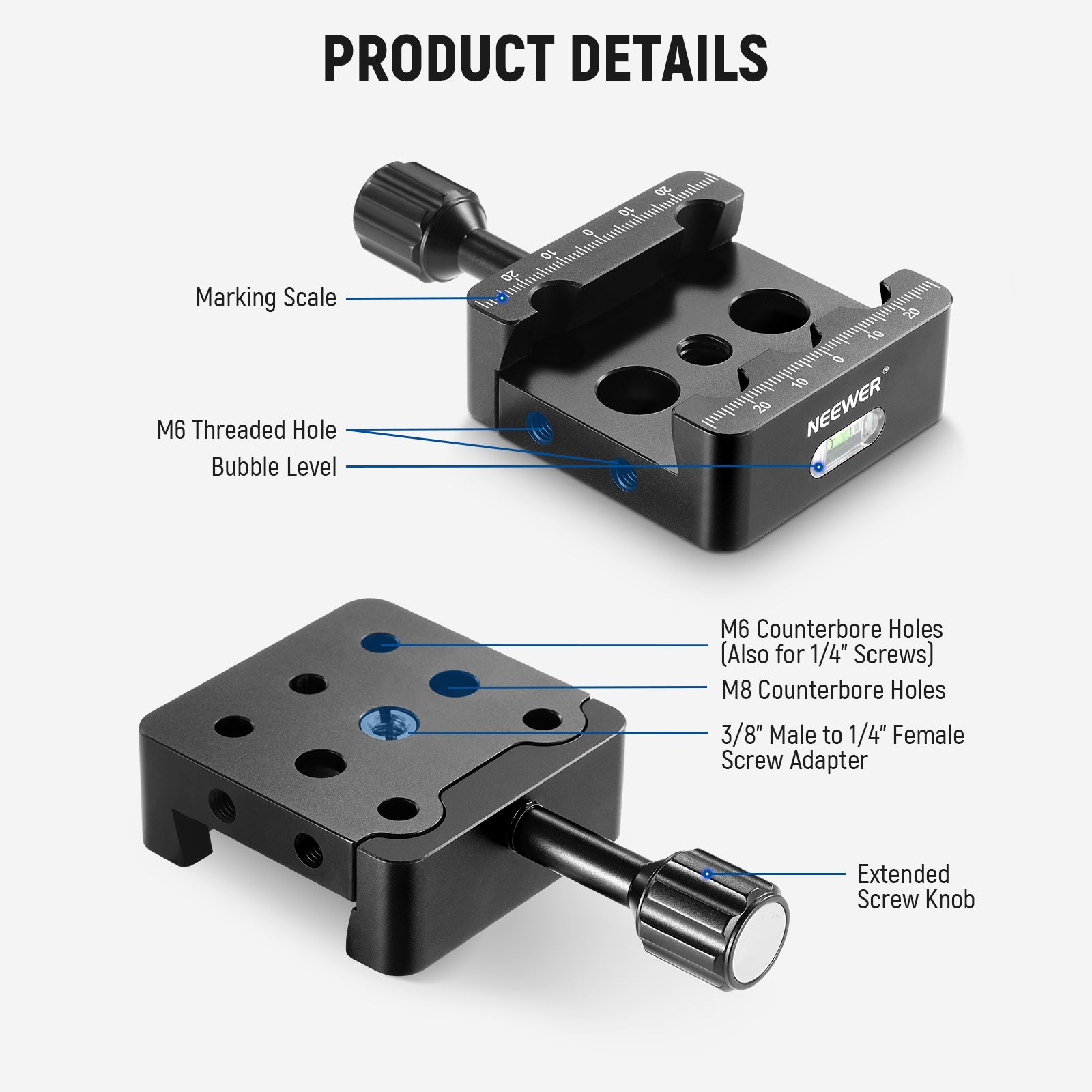

  • Sufficient Mounting Threads- 2 x M8 countersink bores with 35mm spacing. 5 x M6 countersink bores (also for 1/4" screws) in total: four M6 countersink bores with 38mm spacing and a M6 countersink bore 19mm from the center. 4 x M6 threaded holes on both sides. Achieve attachment for the saddle to the equatorial mount head and optical tube assembly

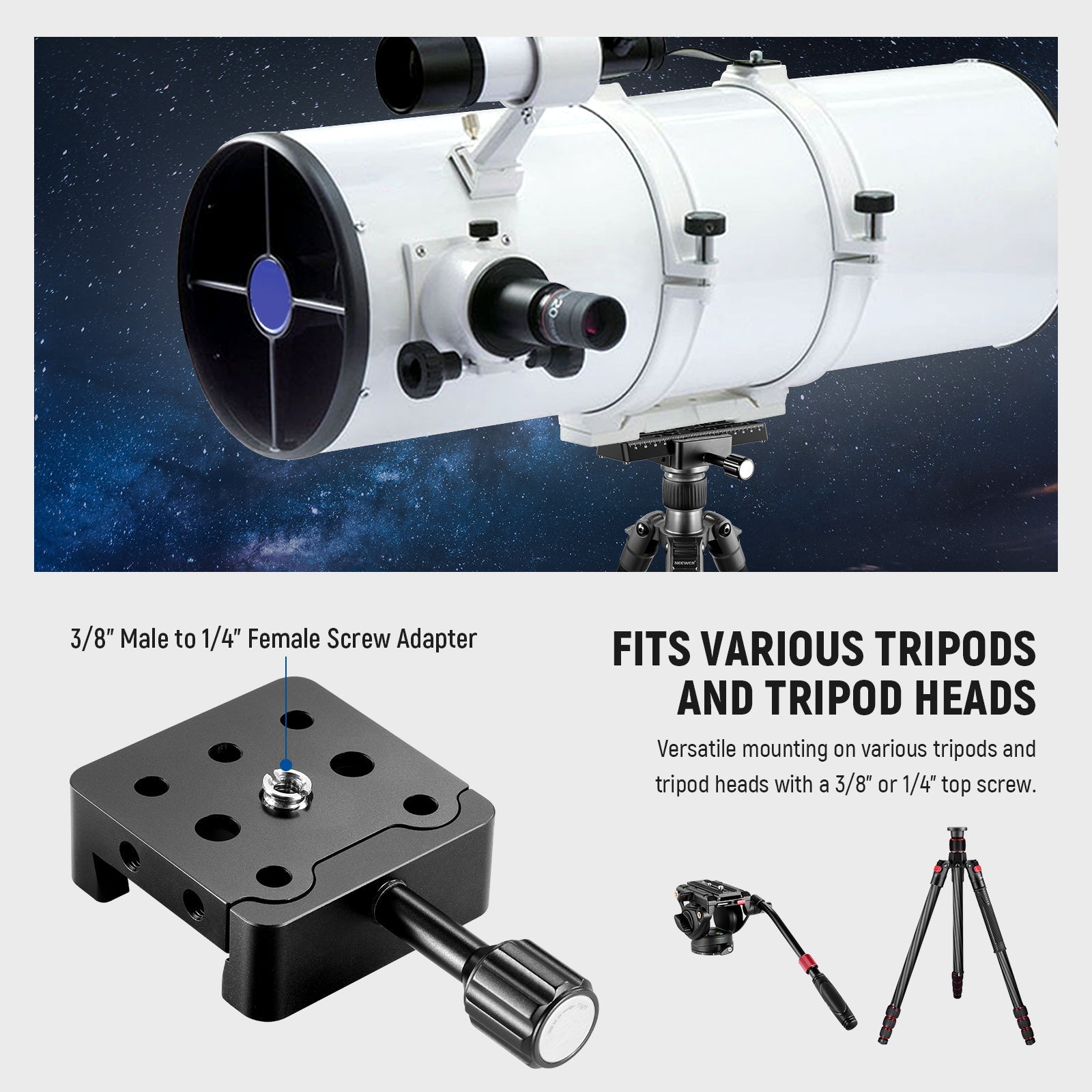

  • For Various Tripods or Tripod Heads- There is a 3/8" threaded hole on the bottom center as well as a 3/8" to 1/4" screw thread adapter included for easier mounting on various tripods and tripod heads with a 3/8" or 1/4" top screw. Also designed with a bubble level, the clamp helps you easily keep the telescope parallel to the ground

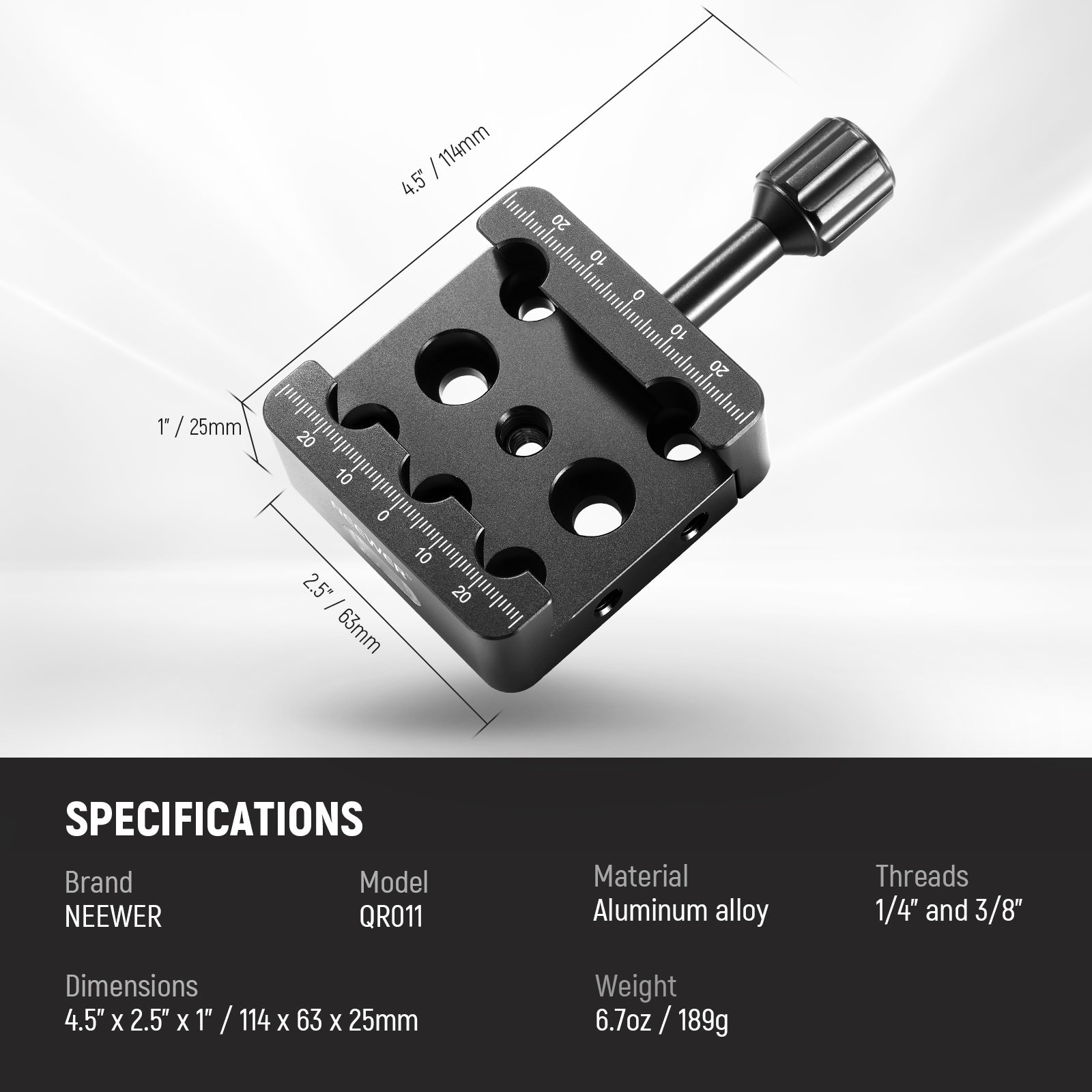

Specifications

  • Model: QR011
  • Material: Aluminum alloy
  • Dimensions: 4.5" x 2.5" x 1"/114 x 63 x 25mm
  • Weight: 6.7oz/189g

Package Contents

  • 1 x Telescope Dovetail Saddle Clamp for Vixen Style Rail Bar
  • 1 x 3/8" to 1/4" Screw Thread Adapter
